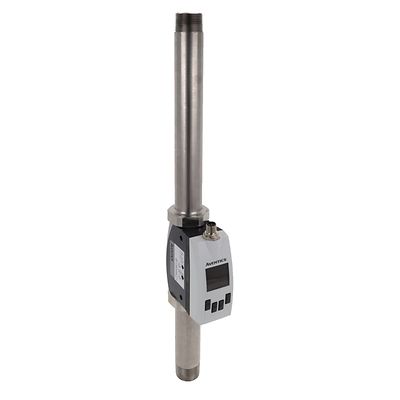

AVENTICS™ Series AF2 flow rate sensor, IO-Link G652AV004JA0000

Note

Output signal: 1 analog output 4 mA ... 20 mA + 1 digital/analog output (PNP, NPN, push-pull, 4 mA ... 20 mA/switchable) + 1 digital output (PNP, NPN, push-pull, switchable), IO-Link V1.1 (COM3/230K4 baud), Without mounting

Frame size

DN15

Switching principle

Flow measuring principle: calorimetric

Protocol

IO-Link, Analog

Nominal flow Qn min., standard

5.3 l/min

Nominal flow Qn max., standard

1060 l/min

Nominal flow Qn min., extended

1060 l/min

Nominal flow Qn max., extended

1590 l/min

Compressed air connection

G 1/2

Certificates

CE declaration of conformity, RoHS, UL (Underwriters Laboratories)

Working pressure min.

0 bar

Working pressure max

16 bar

Min. ambient temperature

-20 °C

Max. ambient temperature

60 °C

Medium

Compressed air, Argon, Nitrogen, Helium, Carbon dioxide

Pipe material

Stainless Steel 1.4301

Display

OLED

Flow display unit

l/sec, l/min, m³/min, m³/h, ft³/s, m³/min

Pressure display unit

bar, psi

Temperature display unit

°C, °F

Electrical connection 2, type

Plug

Electrical connection 2, thread size

M12x1

Electrical connection 2, number of poles

5-pin

Electrical connection 2, coding

A-coded

Output signal

PNP, NPN, push-pull, 1x IO-Link
