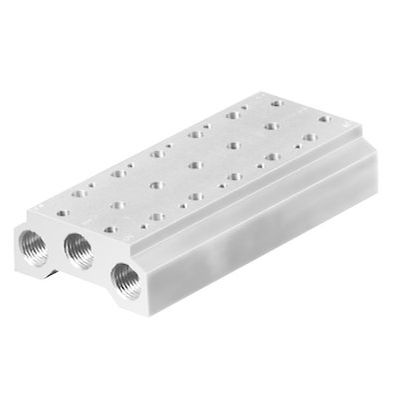

AVENTICS™ Base plate, Series 335 35500333

Type

Base plate

Compressed air connection input

G 1/4

Compressed air connection output

G 1/8

Port exhaust

G 1/4

Scope of delivery

The manifold base plates are supplied with screws and seals for valve assembly, as well as 3 plugs for ports 1/3/5.

Working pressure min.

0 bar

Working pressure max

8 bar

Min. ambient temperature

5 °C

Max. ambient temperature

50 °C

Min. medium temperature

5 °C

Max. medium temperature

50 °C

Medium

Compressed air, Neutral gases

Max. particle size

50 µm

Oil content of compressed air min.

0 mg/m³

Oil content of compressed air max.

5 mg/m³

Max. number of valve positions

2

Weight

0.145 kg

Material base plate

Aluminum

Seal material

caoutchouc/butadiene caoutchouc
