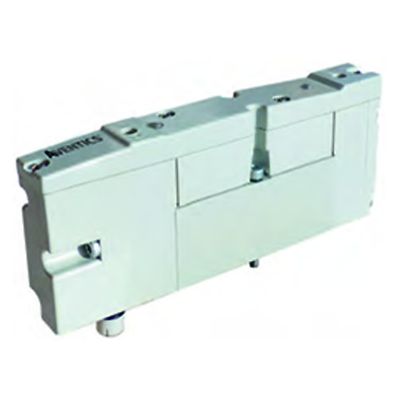

AVENTICS™ 5/2-directional valve, Series 502 R502A1B10MA00F1

Activation

Electrically

Actuating control

Single Solenoid

Pilot

External

Nominal flow Qn

470 l/min

Working pressure min.

2 bar

Working pressure max

8 bar

Operational↩voltage

24 V DC

Voltage tolerance DC

-15% / +10%

Protection class with connection

IP65

Reverse polarity protection

Protected against polarity reversal

Sealing principle

metal/metal sealing

Power consumption DC

1.1 W

Duty cycle

100 %

Typ. switch-on time

16 ms

Typ. switch-off time

49 ms

Min. ambient temperature

-10 °C

Max. ambient temperature

50 °C

Weight

0.169 kg

Housing material

Die cast zinc
